Description

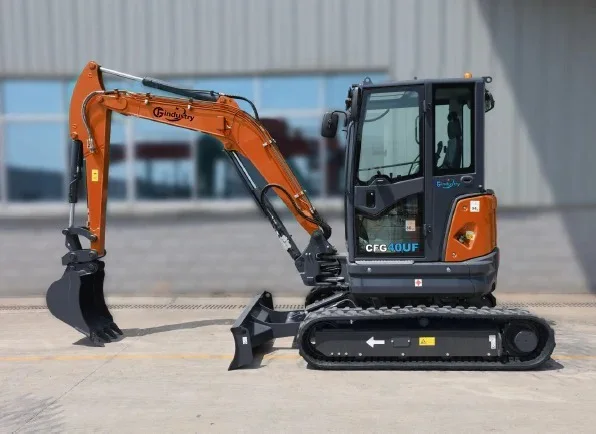

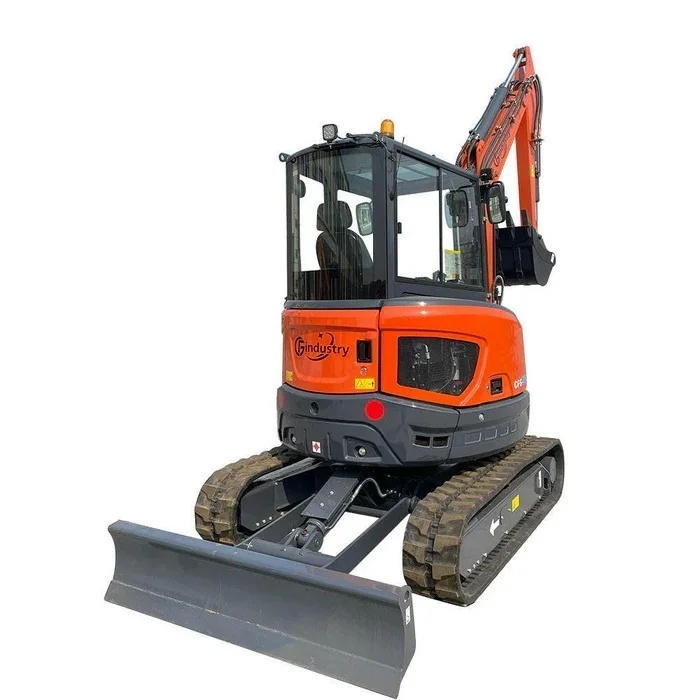

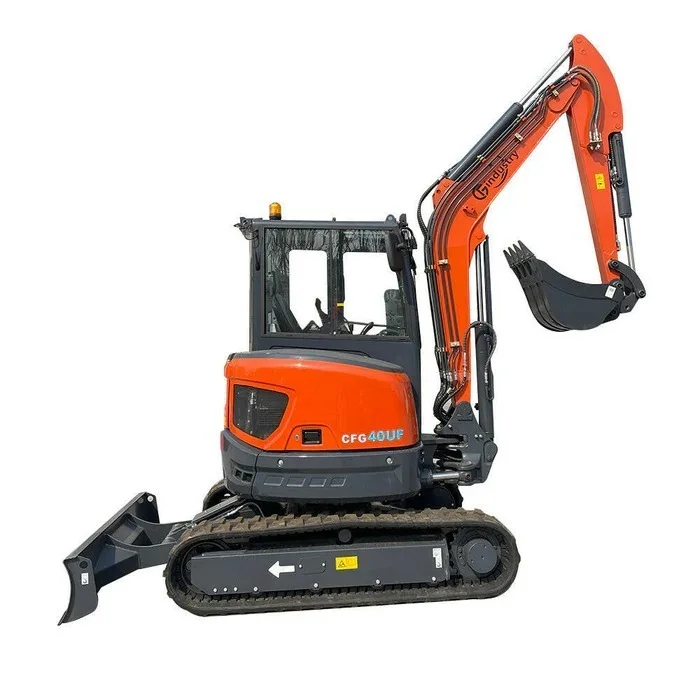

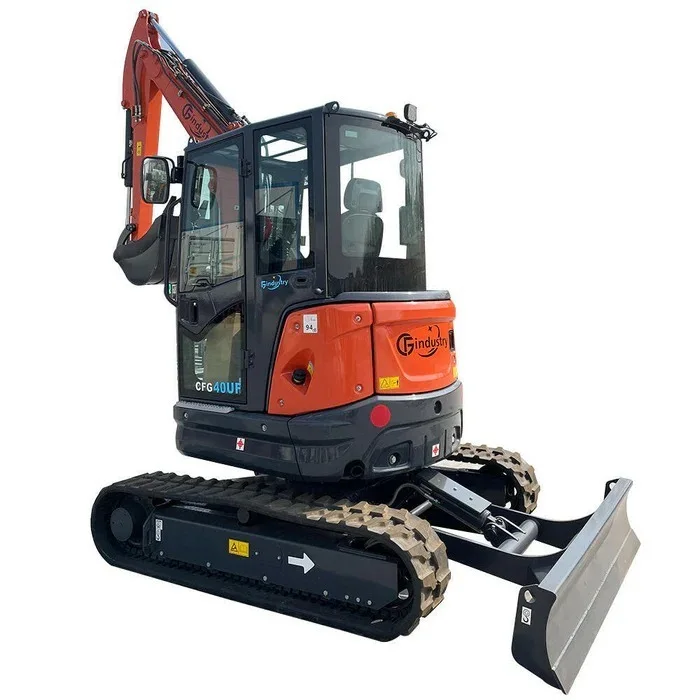

The AGT CFG‑40UF is a versatile 4‑ton mini excavator powered by a robust Kubota D1703‑E4B‑SWD‑1 diesel engine. Offering exceptional performance with cabin or canopy options, it’s ideal for demanding landscaping, construction, utility, and rock-breaking applications.
🔧 Key Features
-
Engine: Kubota D1703‑E4B‑SWD‑1 diesel – smooth, reliable, EPA-compliant
-
Horsepower: 25 HP – strong and efficient
-
Bucket Capacity: 0.11 m³ (~110 L) for enhanced productivity
-
Digging Depth: Up to 130.7″ (3.32 m) – excellent reach
-

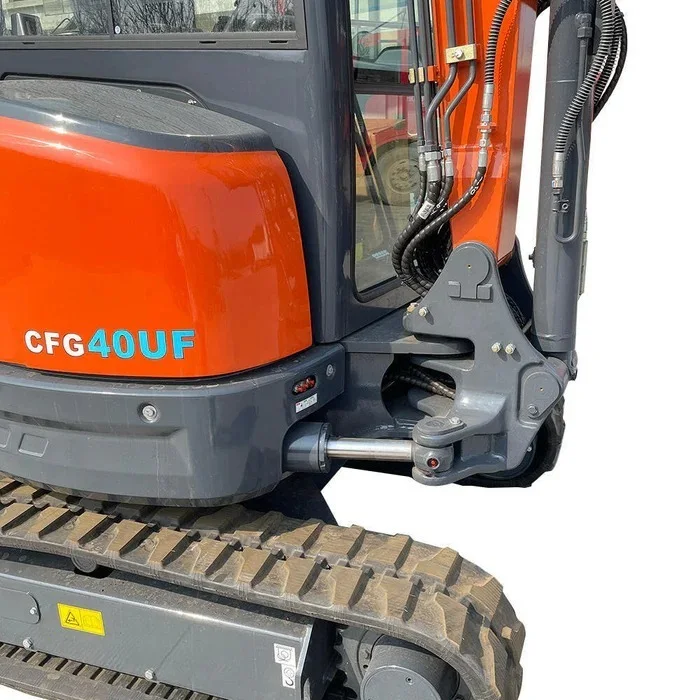

Hydraulic Thumb & Boom Swing: Equipped for versatile tasks
-
Track Options: Choose rubber or steel tracks for surface compatibility
-

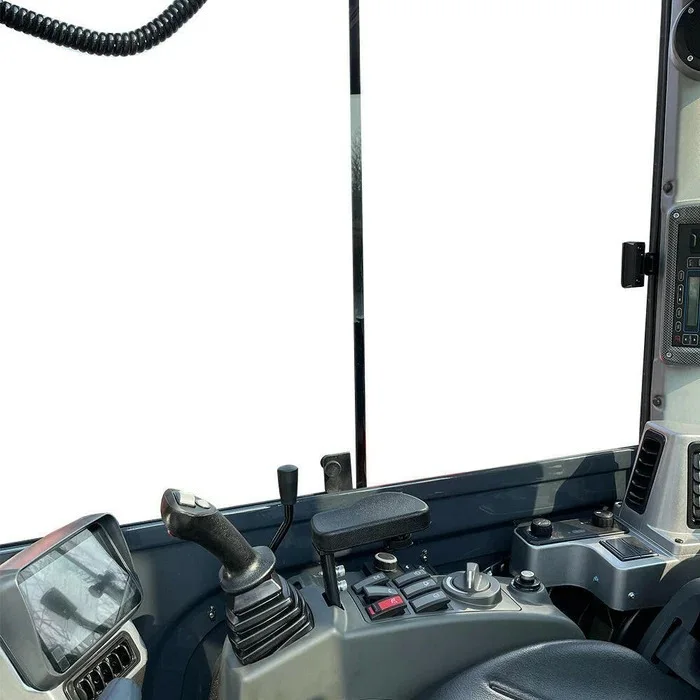

Cab/Canopy: Comfortable operator environment, customizable
🧰 Attachments Included (12-in-1 Clearance Bundle)
This mini excavator package includes 12 premium attachments selected for optimal use with 4-ton machines:
-
1 × 24″ Digging Bucket (standard)
-
1 × 500mm Mud Bucket – For wide trenching & grading
-
1 × 600mm Skeleton Bucket – For sifting and sorting material
-
1 × Hydraulic Auger Drive – Ideal for post holes & deep drilling
-
1 × Heavy-Duty Ripper – Breaks through hard ground & frost
-
1 × Mechanical Grapple – Great for brush and debris removal
-
1 × Mechanical Thumb – Enhances load handling
-
1 × Tilt Grading Bucket – Perfect for landscaping and leveling
-
1 × Grading Rake – Levels soil and prepares seedbeds
-
1 × Trenching Blade – Creates narrow trenches with precision
-
1 × Quick Hitch Coupler – Fast attachment swapping
-
1 × Hydraulic Breaker – For concrete, rocks, and demolition
📊 Technical Specifications
| Operating Weight | 4 ton (approx.) |
| Engine Model | Kubota D1703‑E4B‑SWD‑1 |
| Horsepower | 25 HP @ 2200 RPM |
| Bucket Capacity | 0.11 m³ |
| Max Digging Depth | 130.7″ (3.32 m) |
| Boom Swing Angle | Left 72°, Right 44° |
| Ground Clearance | 10.62″ (27 cm) |
| Track Dimensions | Width: 11.81″; Length: 85.15″ |
| Max Digging Force | 31.8 kN (bucket), 19.8 kN (arm) |
| Travel Speed | High/Low: 4.0 / 2.3 km/h |
| Gradeability | 30% |
| Hydraulic System Pressure | 24.5 MPa |
| Fuel Tank | 40 L |
| Hydraulic Oil Tank | 41 L |
| Ground Pressure | 33.99 kPa |
📦 Shipping & Delivery
| Standard | 15–25 business days | Free |
| Express | 7–10 business days | $249 |
🔄 Return & Warranty Policy
-
Return Window: 60 days from delivery
-
Warranty: 5-year warranty covering manufacturing defects and performance issues
📦 What’s Included
-
1 × AGT CFG‑40UF 4‑Ton Mini Excavator
-
1 × 0.11 m³ standard digging bucket
-
1 × Hydraulic thumb
-
1 × Tool kit
-
1 × Cabin or canopy (selection)
-
1 × Digital operator manual
🛠️ Applications
-
Heavy landscaping and site prep
-
Trenching for utilities and drainage
-
Construction and demolition
-
Rock breaking & clearing
-
Municipal and public works
-
Agricultural and grounds maintenance
The AGT CFG‑40UF delivers a powerful Kubota engine in a flexible, job-ready package—combining productivity, comfort, and ease of use in a compact 4-ton excavator.
