Description

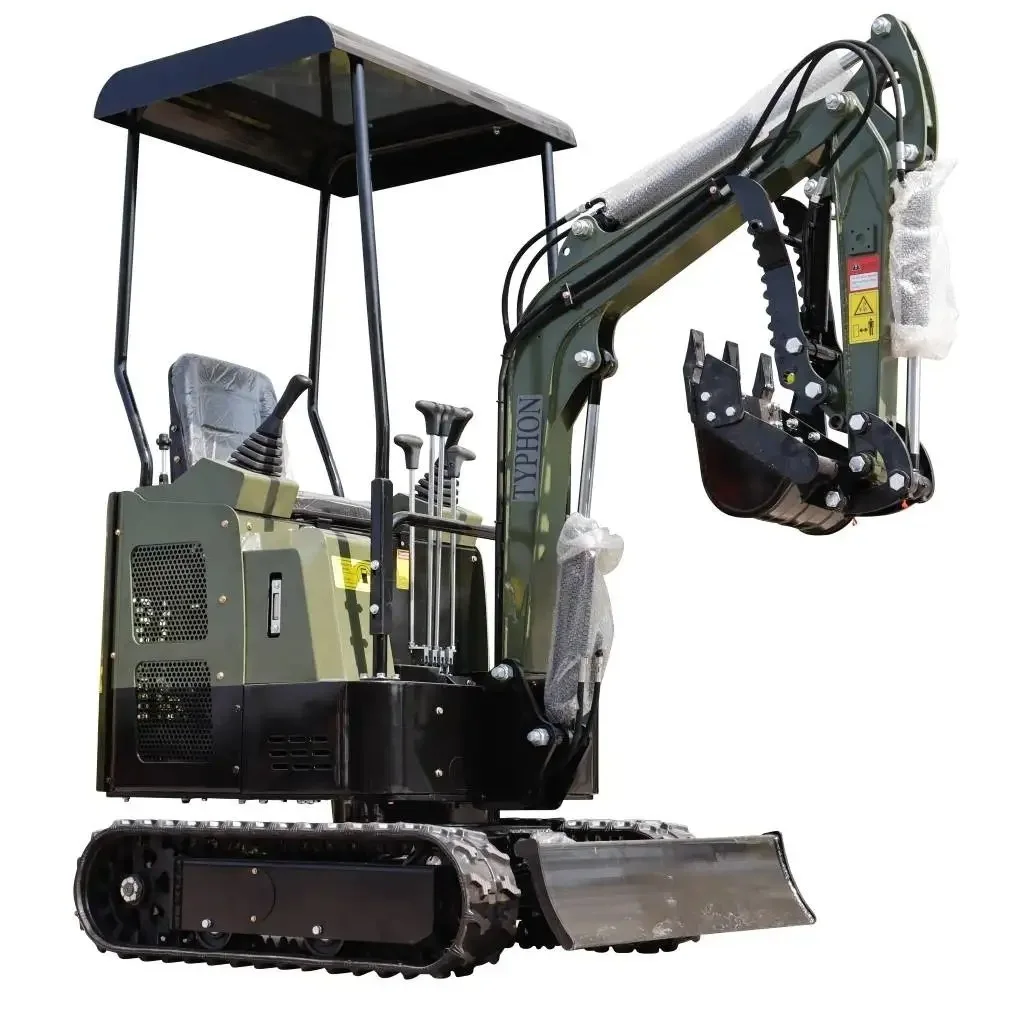

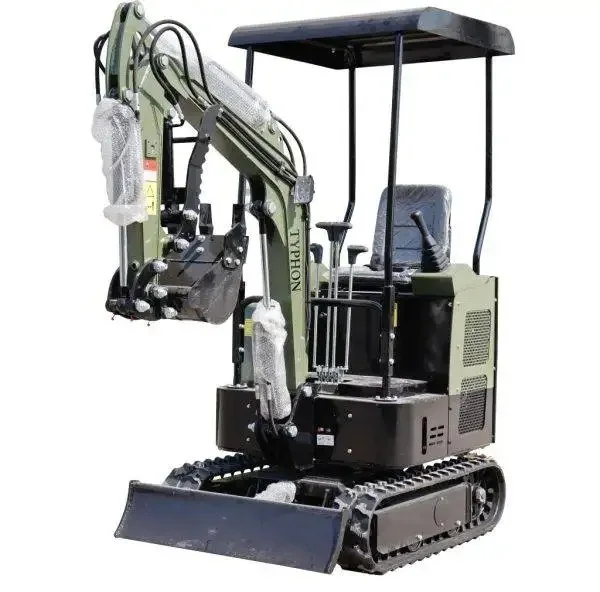

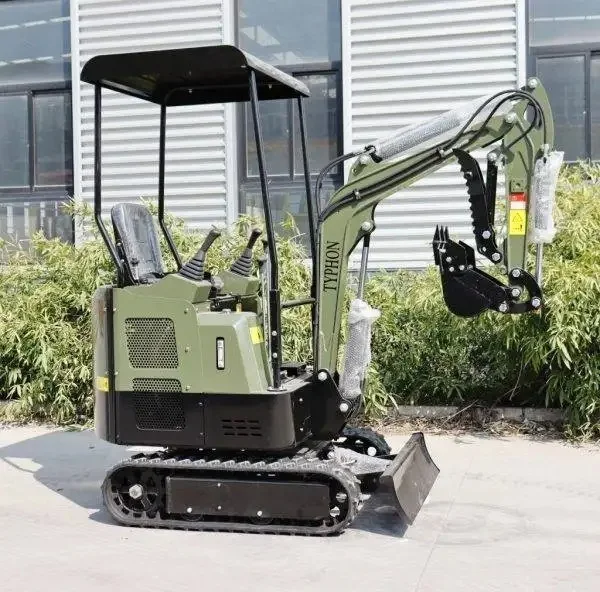

Introducing the 2025 TYPHON TERROR XV STORM, a compact yet powerful 1.05‑ton trench digger designed for contractors, landscapers, and utility workers. Powered by a reliable 13.5 HP Briggs & Stratton engine, this excavator delivers efficient job performance in tight spaces and rugged environments.
🔧 Key Features
-
Engine: 13.5 HP Briggs & Stratton, water‑cooled petrol engine (EPA Tier 4 Final)
-
Operating Weight: ~1,000 kg (2,205 lb)
-
Bucket Width: 380 mm (15 in)
-
Retractable Tracks: Compact 2775 × 930 mm footprint, ideal for tight jobsites
-
Max Digging Depth: 1,650 mm (5.4 ft)
-
Max Digging Reach: 2,850 mm (9.35 ft)
-
Max Digging Height: 2,650 mm (8.69 ft)
-
Swing Radius: 1,350 mm (4.43 ft)
-
Ground Clearance: Great for rough terrain maneuvering
-
Travel Speed: 2.2 km/h, ideal for controlled movements
-
Swing Speed: 12 rpm for quick operations
-
Gradeability: Up to 30°, designed for slopes
-
Ground Pressure: Low at 19 kPa, easy on turf
-
Digging Force: 7.5 kN, strong for its size
📊 Technical Specifications
| Engine | Briggs & Stratton, 13.5 HP, EPA Tier 4 Final |
| Bucket Capacity | 0.025 m³ (0.88 ft³) |
| Operating Weight | 1,000 kg (2,205 lb) |
| Dimensions | 2775 × 930 × 1539 mm |
| Max Dig Depth | 1,650 mm (5.4 ft) |
| Max Reach | 2,850 mm (9.35 ft) |
| Max Height | 2,650 mm (8.69 ft) |
| Swing Radius | 1,350 mm (4.43 ft) |
| Travel Speed | 2.2 km/h |
| Swing Speed | 12 rpm |
| Gradeability | 30° |
| Ground Pressure | 19 kPa |
| Dig Force | 7.5 kN |
📦 Shipping & Delivery
| Standard | 15-25 business days | Free |
| Express | 7-10 business days | $249 |
🔄 Return & Warranty Policy
-
Return Window: 60 days from delivery
-
Warranty: 5-year coverage for manufacturing and performance defects
📦 What’s Included
-
1 × TYPHON TERROR XV STORM Mini Excavator
-
1 × Standard 380 mm (15 in) digging bucket
-
1 × Tool kit
-
1 × Propelled with a retractable tracked chassis
-
1 × Digital user manual
🧰 Attachments Included (12-in-1 Clearance Bundle)
This mini excavator comes with 12 essential attachments for compact, jobsite-ready versatility:
-
1 × 15″ Digging Bucket (standard)
-
1 × 8″ Trenching Bucket – Perfect for narrow ditches
-
1 × Ripper Tooth – Breaks hard ground and roots
-
1 × Mechanical Thumb – Enhances material grip
-
1 × Skeleton Bucket – Sifts soil and debris
-
1 × Tilt Grading Bucket – Smooth grading and slope work
-
1 × Rake Attachment – Clears and levels soft surfaces
-
1 × Quick Hitch – Rapid tool change
-
1 × Hydraulic Auger – Drills clean post holes
-
1 × Mechanical Grapple – For logs and brush removal
-
1 × Ditch Cleaning Bucket – Shaped for wide shallow scooping
-
1 × Hydraulic Breaker – For concrete, stone, and asphalt jobs
🛠️ Applications
-
Trenching, pipeline, and utility work
-
Residential landscaping and garden prep
-
Small demolition and clearing jobs
-
Park and grounds maintenance
-
Tight-site construction
-
Light farm and vineyard operations
The 2025 TYPHON TERROR XV STORM is a nimble, jobsite-ready mini excavator offering impressive performance and versatility in a small form.
